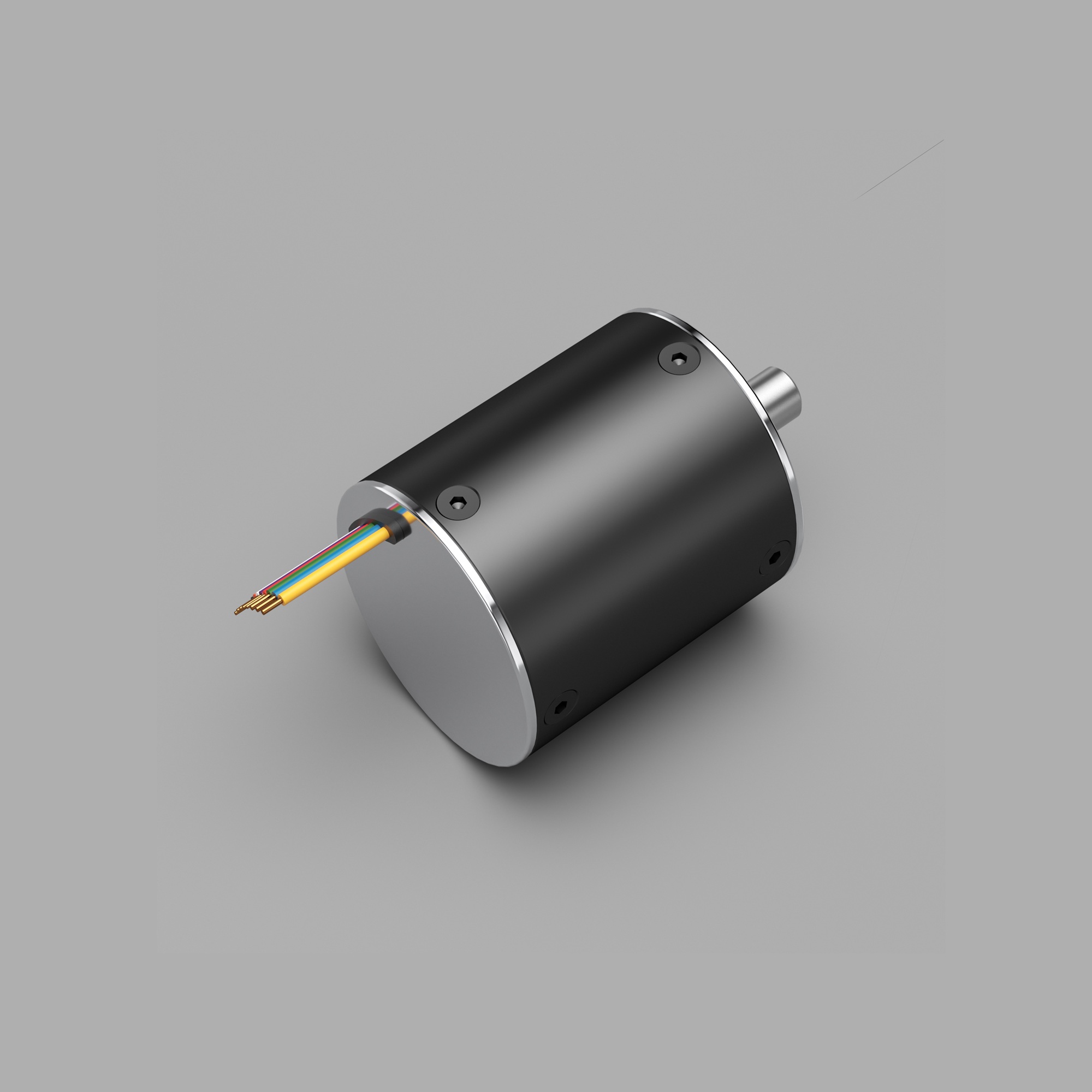

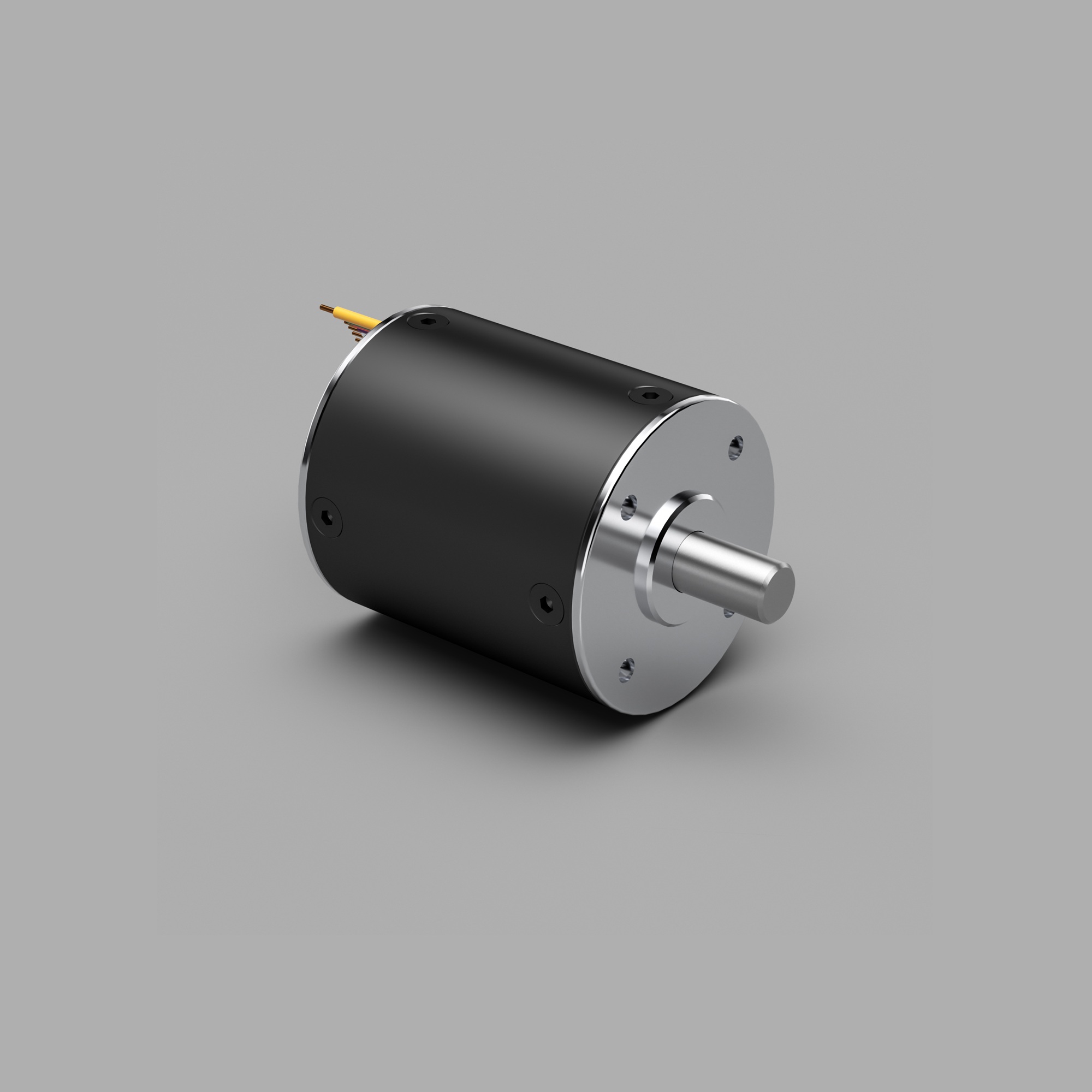

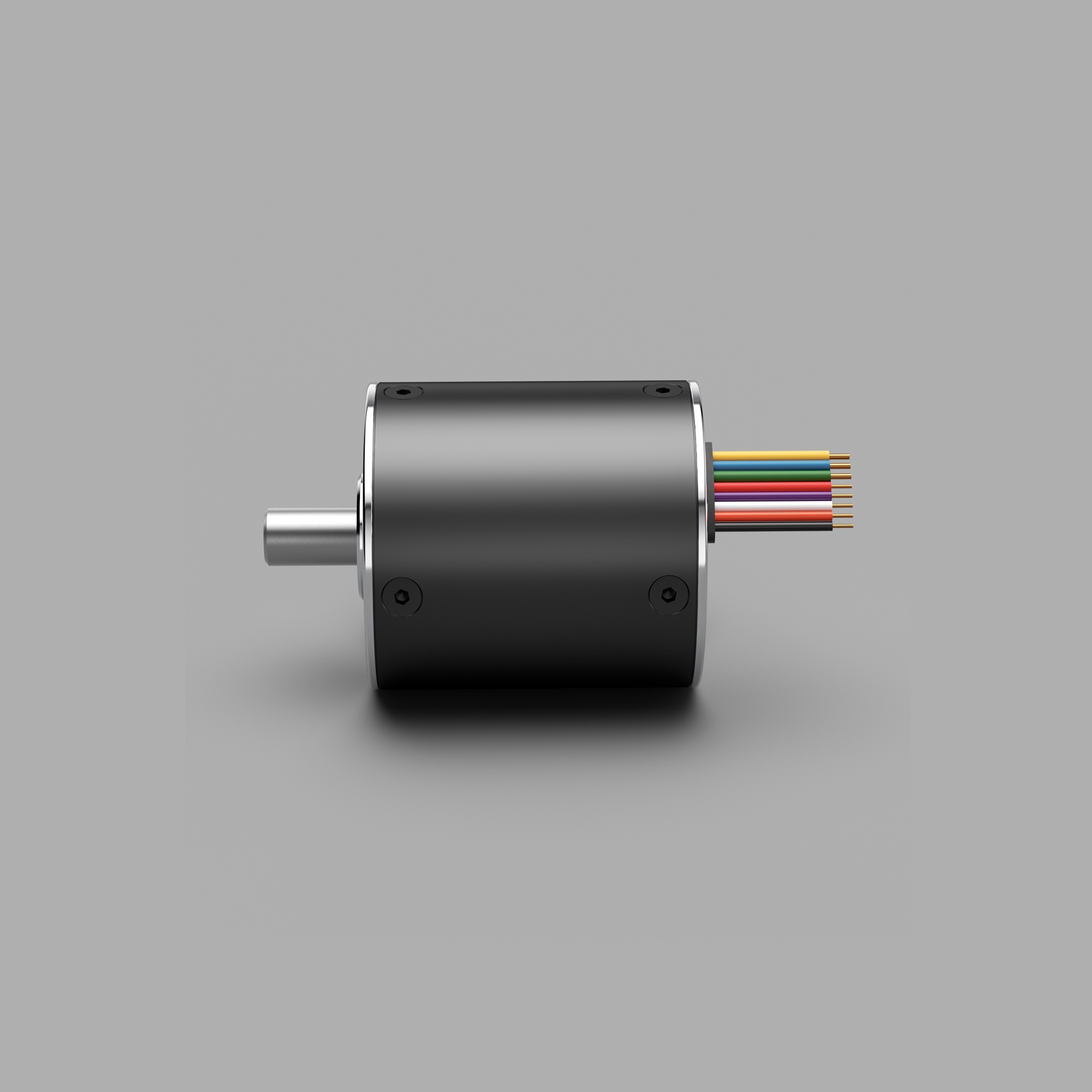

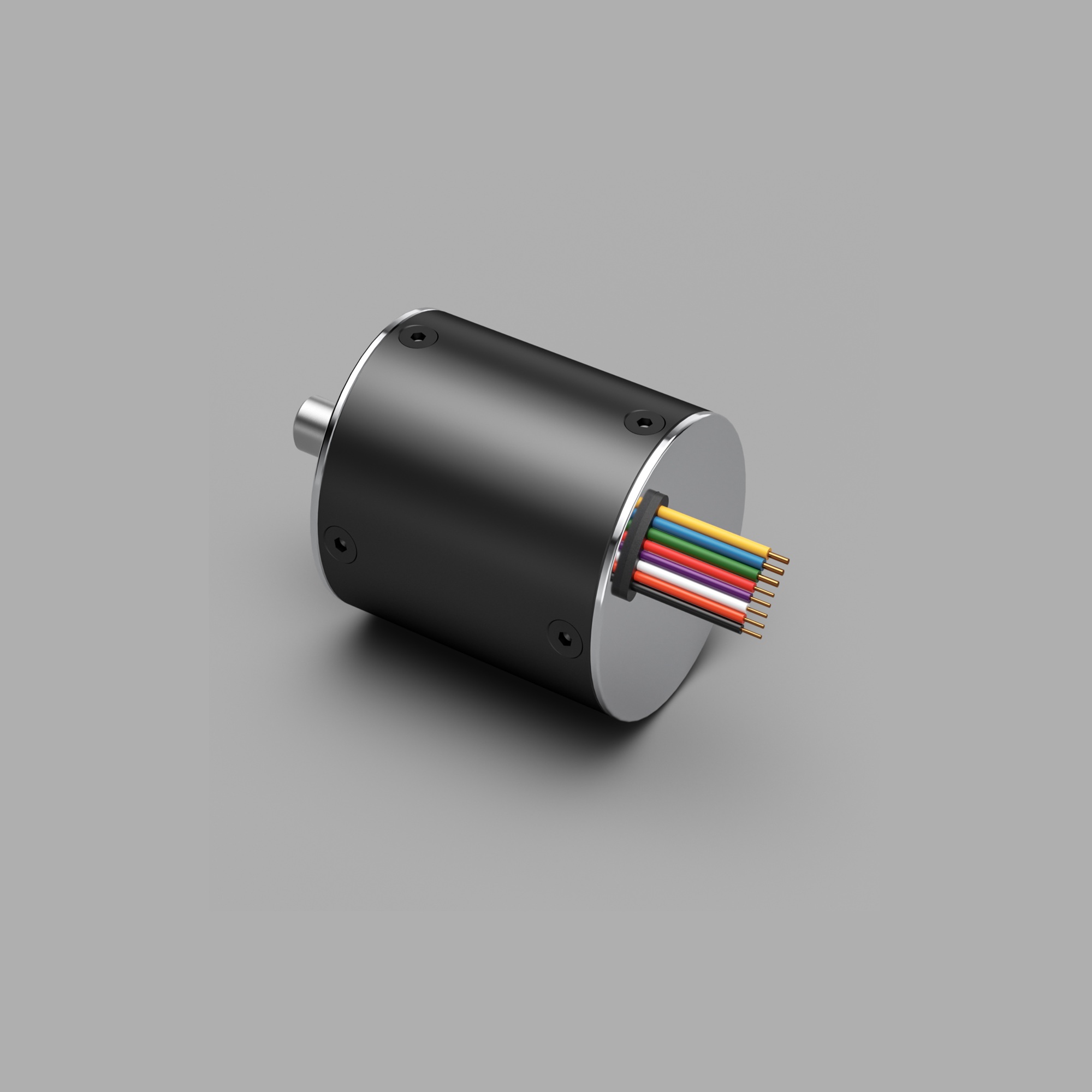

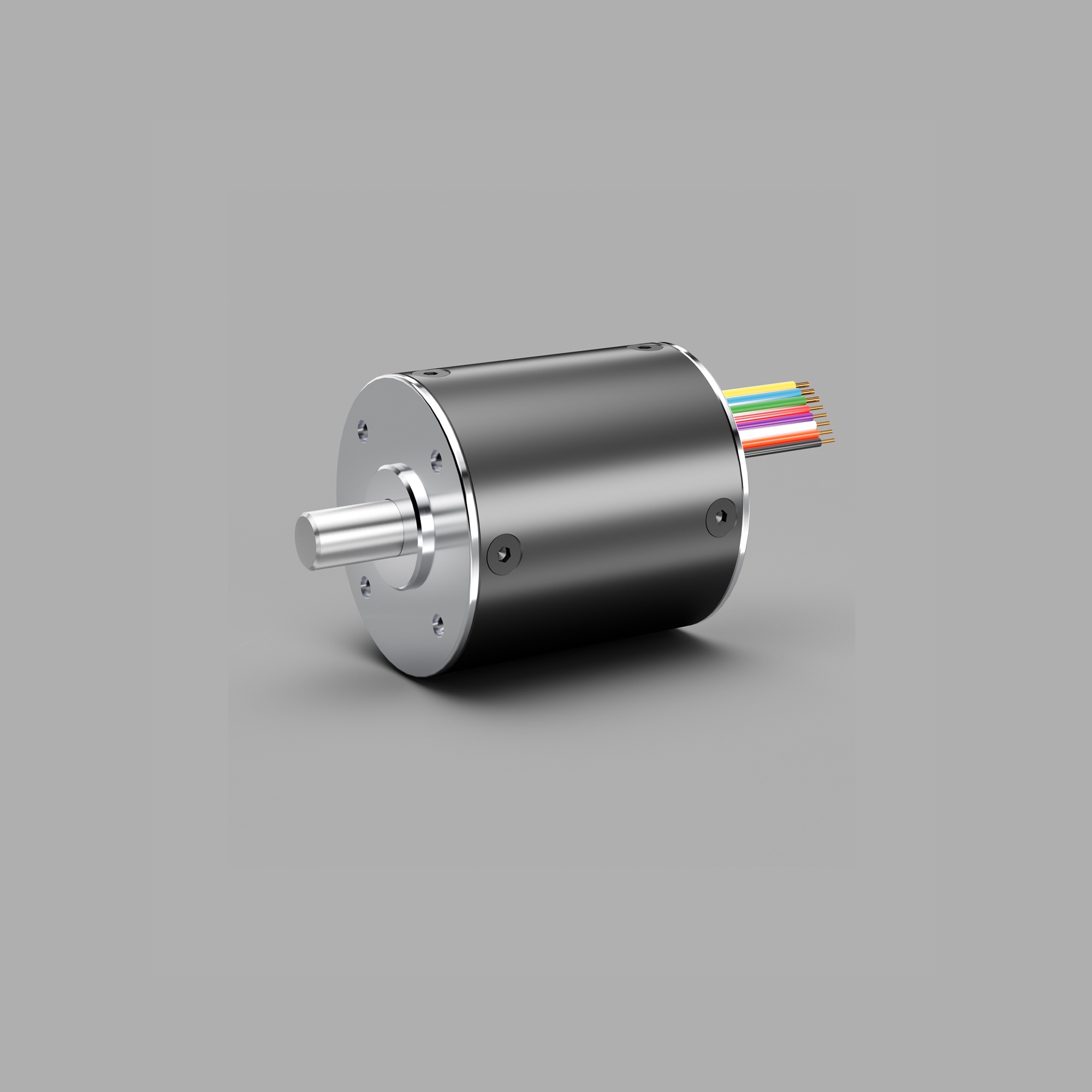

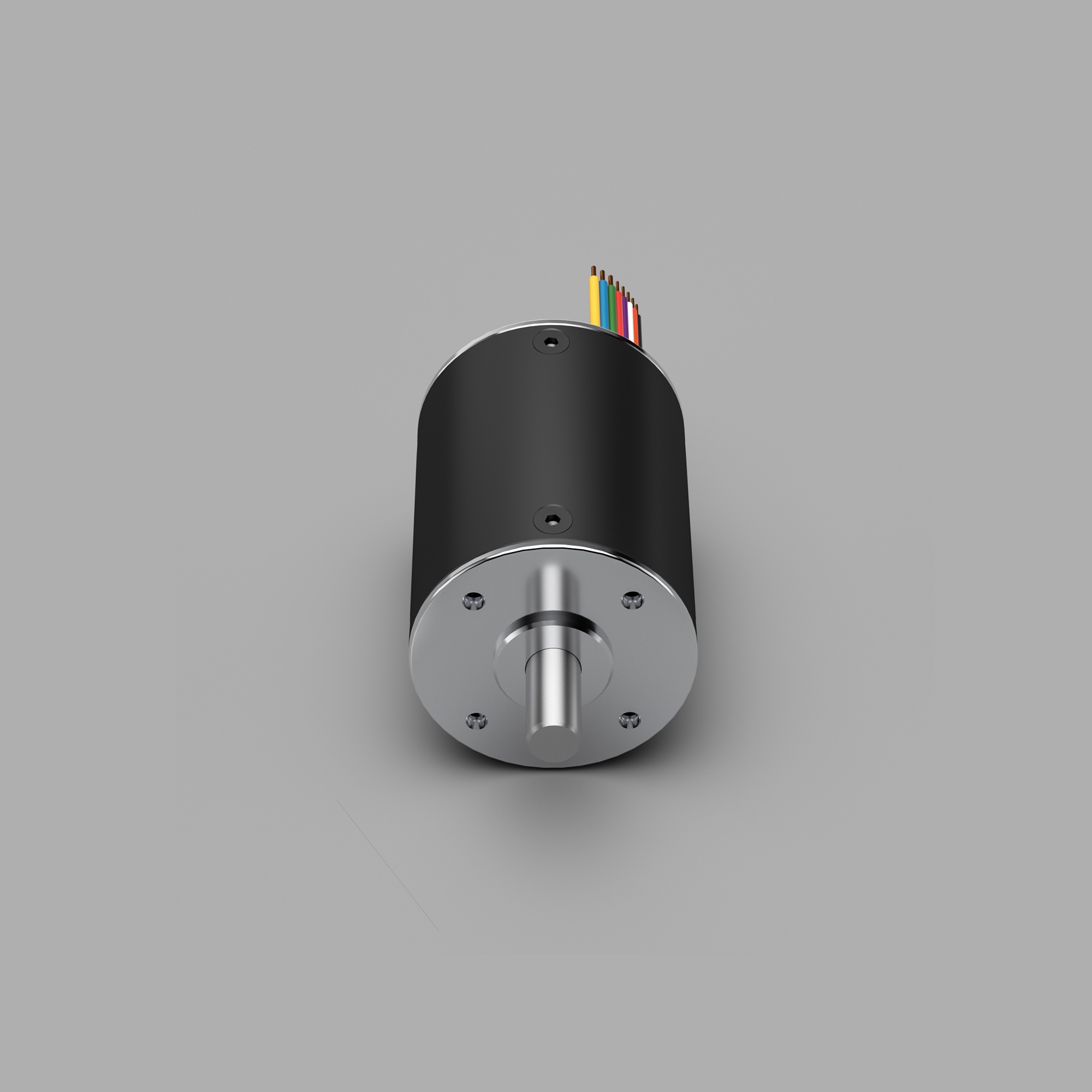

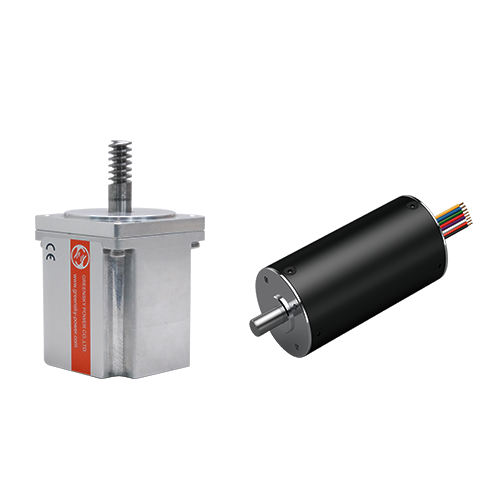

BLDC Motor Series 42mm
High-efficiency BLDC motor with an 42 mm frame and durable round housing. Designed for compact installations. Delivers outstanding performance, smooth operation, and superior energy efficiency. Customizable with gear boxes, mounting flange, encoder and integrated driver. CE, RoHS, REACH Compliant.
General Specification
| Item | Specification |
|---|---|
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 15N@10mm form the flange |
| Max.axial force | 10N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min..500VDC |
Electrical Specification
| Item | Unit | BLDC42-1 | BLDC42-2 | BLDC42-3 | BLDC42-4 |
|---|---|---|---|---|---|
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 4 | |||
| Rated Voltage | VDC | 24 | 36 | 24 | 24 |
| Rated Speed | Rpm | 3500 | 4000 | 4000 | 6300 |
| Rated Torque | mN.m | 18 | 80 | 150 | 115 |
| Rated Power | W | 6.5 | 32 | 62 | 76 |
| Peak Torque | mN.m | 60 | 240 | 450 | 500 |
| Peak Current | Amps | 1.5 | 5 | 7.5 | 10 |
| Torque Constant | mN.m/A | 48.7 | 38.5 | 38.6 | 28.7 |
| Rotor lnertia | g.c㎡ | 15.6 | 33 | 84 | 94 |
| Body Length | mm | 30 | 60 | 85 | 93 |
| Weight | Kg | 0.25 | 0.35 | 0.7 | 0.8 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25~+70℃ | ||||
| Operating Temperature | -15~+50℃ | ||||
| Working Humidity | 85% RH or lower (no condensation) {≤85% RH} | ||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gases, no flammable gases, no oil mist, no dust | ||||
| Altitude | 1000 meters or less | ||||
