PRIMARY FEATURES
01
Higher Power Density
BLDC motors deliver more output power within a smaller frame compared to induction motors. Their permanent magnet rotor design enables compact, lightweight solutions without compromising torque or speed.
02
Higher Efficiency
By eliminating rotor copper loss and reducing heat generation, BLDC motors achieve significantly higher efficiency. This lowers energy consumption, reduces operating costs, and extends battery life in portable applications.
03
Precise Speed and Torque Control
Electronic commutation allows accurate control of speed and torque. This ensures smooth operation, fast dynamic response, and superior performance in applications requiring precision, such as robotics and medical devices.
04
Long Service Life & Low Maintenance
Without brushes or commutators, BLDC motors avoid mechanical wear, minimizing maintenance needs and ensuring long-term reliability even in demanding environments.
05
Wide Application Flexibility
BLDC motors are available in a broad range of diameters and power ratings (Φ22 mm to Φ110 mm, 5 W to 1200 W). This allows seamless adaptation to diverse industries—from small household appliances to industrial automation.
06
Low Noise & High Reliability
The brushless design reduces electrical and mechanical noise, improving user comfort and ensuring stable performance in sensitive equipment. This makes BLDC motors ideal for quiet, high-reliability applications.
BLDC Motor vs Brushed DC Motor
| Feature | BLDC Motor | Brushed Motor |
|---|---|---|
| Efficiency | High | Lower |
| Maintenance | Low | High |
| Noise | Low | Higher |
| Lifespan | Long | Short |
| Speed Control | Precise | Limited |
Why Choose UNITED MOTION INC.
| Advantage | Description |
|---|---|
| 15+ Years Manufacturing Experience | Stable production and engineering support |
| Global Manufacturing Capacity | China + Thailand facilities |

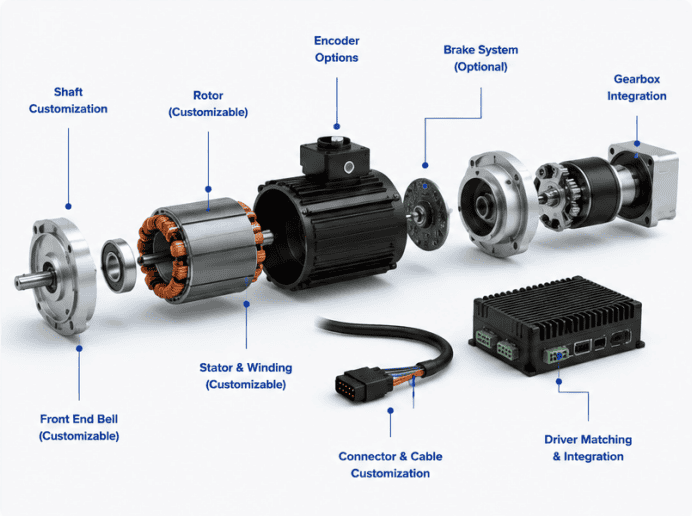

| Custom BLDC Motor Solutions | Encoder, gearbox, driver integration |
| Fast North America Support | Local technical communication |
| CE / RoHS / REACH Compliance | Suitable for global OEM projects |
BLDC Motor Applications
Solar Tracking Systems
Stable torque output
Robotics
Precise motion control
Drones
High power density
Electric Bikes
High efficiency
Electric Kayaks
Low noise & reliability
Water Pumps
Energy saving
India
China
Selection Guide
Step 1 — Determine Required Torque
Continuous Torque
The torque required for normal continuous operation without overheating.
Peak Torque
Short-term maximum torque during startup or sudden load changes.
Motor Overheating Guide
Step 2 — Calculate Required Speed
Motor speed is measured in RPM (Revolutions Per Minute).
• Low RPM: Solar trackers, conveyors
• High RPM: Power tools, fans
BLDC Motor Speed Control Guide
Step 3 — Select Voltage
24V
Industrial automation and AGV systems.
48V
High-power industrial and solar applications.
Solar Tracking Motor Solutions
Step 4 — Choose Feedback Type
Hall Sensor
Cost-effective basic control.
Encoder
High-precision speed and position control.
Step 5 — Consider Environmental Conditions
IP Protection
Select suitable IP ratings for dust and water resistance.
Temperature & Humidity
High heat and moisture can reduce motor lifespan and reliability.
BLDC Motor Maintenance Guide
FAQ for BLDC Motor
A BLDC motor (Brushless DC motor) is an electronically commutated motor that uses permanent magnets and electronic controllers instead of brushes. This design improves efficiency, reduces maintenance, and provides precise speed control compared with traditional brushed motors.
BLDC motors are widely used in industries such as robotics, industrial automation, medical devices, electric vehicles, drones, and home appliances where efficiency and precise motion control are required.
Yes. BLDC motors can be customized in voltage, speed, torque, shaft design, winding, mounting, and gearbox integration to match specific application requirements.
Yes. BLDC motors require an electronic motor controller to regulate current flow and control rotor position. The controller ensures accurate speed, torque control, and efficient operation.
BLDC motors offer several key advantages including high efficiency, long service life, low maintenance, and quiet operation. Because they eliminate brushes and mechanical commutation, they experience less friction and energy loss.
Yes. BLDC motors can run without Hall sensors using sensorless control based on back EMF. This reduces cost and complexity but may be less stable at low speed compared to Hall sensor versions.
Yes. Many BLDC motor manufacturers offer customization options including:
- Voltage and power ratings
- Shaft design
- Gearbox integration
- Encoder or Hall sensors
- Speed and torque specifications
This allows BLDC motors to be optimized for specific automation or robotics applications.
The main difference is the commutation method.
Brushed DC motors use mechanical brushes and a commutator, while BLDC motors use electronic commutation through a motor controller. This makes BLDC motors more efficient, quieter, and longer-lasting.
