The 60mm Enclosed Permanent Magnet Brushed DC Motor features a compact enclosed design and permanent magnet construction for reliable DC power transmission. It is suitable for industrial equipment, automation systems, and other applications requiring a compact and enclosed brushed DC motor.
As an experienced planetary gear motor manufacturer, United Motion Inc. also provides customization options including gear ratios, shaft configurations, and encoder integration to meet OEM and industrial requirements.

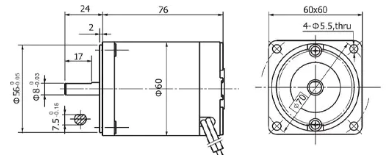

Dimensions
60mm OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.
Motor Technical Parameters
| Type | Rated Voltage DVC | No-load speed r/min | No-load current | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall Torque mN.m | Stall Current A |
|---|---|---|---|---|---|---|---|---|---|
| 60ZY75-2420 | 24 | 2000 | 0.3 | 1600 | 50 | 8 | 0.8 | 215 | 2.1 |
| 60ZY75-2430 | 24 | 3000 | 0.4 | 2400 | 70 | 17 | 1.2 | 296 | 5 |
| 60ZY75-2440 | 24 | 4000 | 0.5 | 3200 | 90 | 30 | 2.2 | 404 | 8.5 |
