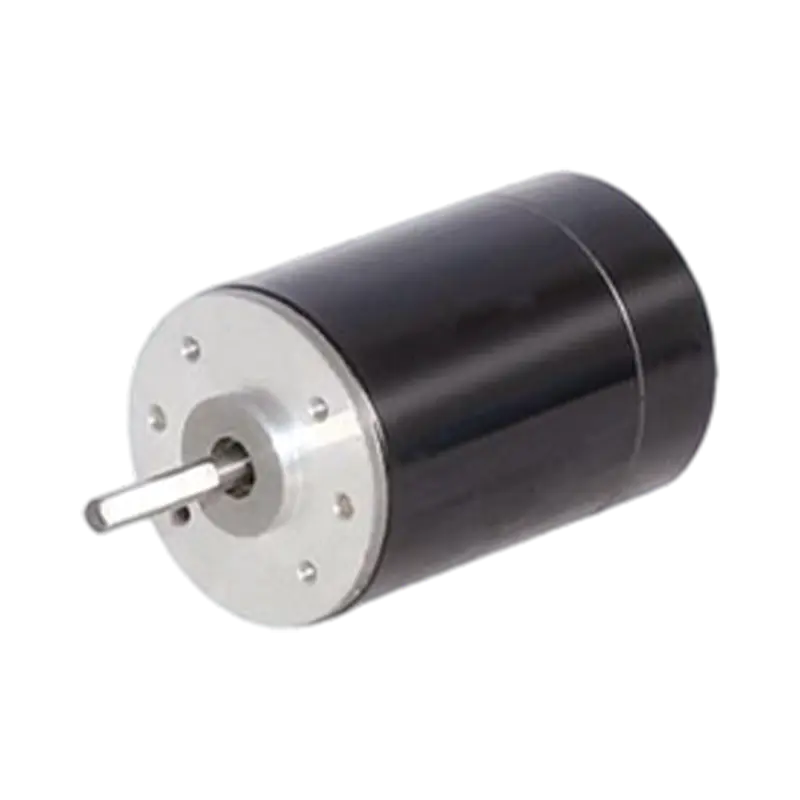

The 38mm Permanent Magnet Brushed DC Motor is available in 24V and 48V configurations, offering a compact and practical solution for various DC drive applications. Its permanent magnet design and brushed construction provide reliable operation and easy integration into industrial equipment, automation systems, and other compact applications.
As an experienced planetary gear motor manufacturer, United Motion Inc. also provides customization options including gear ratios, shaft configurations, and encoder integration to meet OEM and industrial requirements.

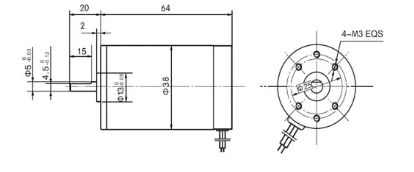

Dimensions
38 mm OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.
Motor Technical Parameters
| Type | Rated Voltage DVC | No-load speed r/min | No-load current | Rated speed r/min | Rated Torque mN.m | Output power W | Rated current A | Stall Torque mN.m | Stall Current A |
|---|---|---|---|---|---|---|---|---|---|
| 38ZY63-2430 | 24 | 3000 | 160 | 2400 | 15 | 3.8 | 0.35 | 65 | 1 |
| 38ZY63-2440 | 24 | 4000 | 220 | 3200 | 20 | 6.5 | 0.6 | 90 | 2 |
