Permanent Magnet Brushed DC Motor 45mm

Low Noise Permanent Magnet Brushed DC Motor 45mm

The 45mm Low Noise Permanent Magnet Brushed DC Motor is designed for applications requiring compact size and reduced operating noise. Its permanent magnet brushed DC design provides reliable and stable operation, making it suitable for automation equipment, compact machinery, and other noise-sensitive applications.

As an experienced planetary gear motor manufacturer, United Motion Inc. also provides customization options including gear ratios, shaft configurations, and encoder integration to meet OEM and industrial requirements.

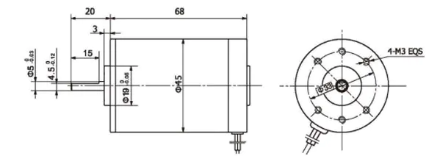

Dimensions

45mm OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Parameters

Type	Rated Voltage DVC	No-load speed r/min	No-load current	Rated speed r/min	Rated Torque mN.m	Output power W	Rated current A	Stall Torque mN.m	Stall Current A
45ZY68-2430	24	3000	0.2	2500	45	12	0.8	190	2.7
45ZY68-2440	24	4000	0.3	3200	55	18	1.2	195	3
