Permanent Magnet Brushed DC Motor 80mm

The 80mm Permanent Magnet Brushed DC Motor is a compact and reliable DC motor designed for industrial equipment, automation systems, and various drive applications. Its permanent magnet design provides stable operation and easy speed control, making it suitable for a wide range of DC motor applications.

As an experienced planetary gear motor manufacturer, United Motion Inc. also provides customization options including gear ratios, shaft configurations, and encoder integration to meet OEM and industrial requirements.

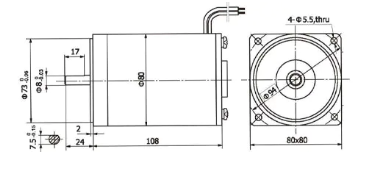

Dimensions

80mm OD PMDC motor, totally enclosed, used in occasions which require motors with low noise.

Motor Technical Parameters

Type	Rated Voltage DVC	No-load speed r/min	No-load current	Rated speed r/min	Rated Torque mN.m	Output power W	Rated current A	Stall Torque mN.m	Stall Current A
80ZY100-2420	24	2000	0.4	1700	0.25	45	3	1.5	16
80ZY100-2430	24	3000	0.5	2600	0.3	80	5	1.8	22
