The 72mm Planetary Gearbox features a compact metal planetary gear design with an allowable torque range of 15N.m to 85N.m. It supports 12V/24V configurations and offers flexible reduction ratios from 3:1 to hundreds:1 through single or multi-stage gearing. Its compact and lightweight design is ideal for space-constrained motion systems.

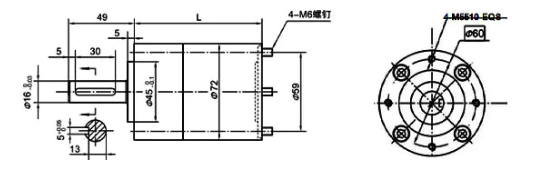

Dimensions
Gear Ratio Parameter
| Gear Ratio | L Dimension | |
|---|---|---|
| Stage1 | 3.7 ~ 6.75 | 56 |
| Stage2 | 14 ~46 | 75.5 |
| Stage3 | 51 ~ 308 | 95.5 |
Parameter
| Parameter | Stage1 | Stage2 | Stage3 |
|---|---|---|---|
| Transmission efficiency | 0.9 | 0.81 | 0.73 |
| Rated tolerance torque | 15N.m | 45N.m | 85N.m |
| Max momentary tolerance torque | Three times of the rated torque | ||
| Operating temperature | -10℃~ +80℃ | ||
| Operating ambient humidity | 20% 〜85%RH | ||
| Recommend input speed | ≤4000rpm | ||
| Input and output direction | Same direction | ||
Technical Data
| Housing material | Metal |
| Bearing at output | Ball bearings |
| Max. Radial load（10mm from flange） | ≤320N |
| Max. shaft axial load | ≤160N |
| Radial play of shaft （near to flange） | ≤0.08mm |
| Axial play of shaft | ≤0.4mm |
| Backlash at no-load | ≤1.5° |
| Shaft press fit force, max | ≤400N |
