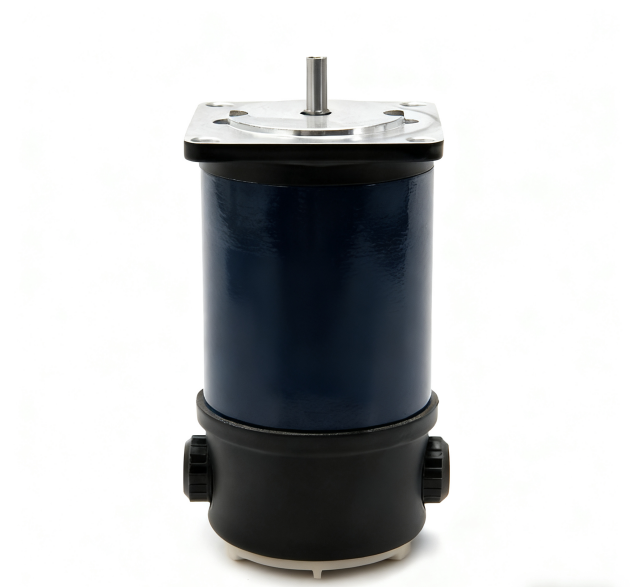

The ST series 110-frame is a compact, brush-commutated Permanent Magnet DC Motor, optionally integrated with an NMRV worm gearbox offering reduction ratios from 7.5:1 to 100:1, and capable of delivering up to 239 N·m of output torque. It is available in 24 VDC, 110 VDC, or 220 VDC versions, with power ratings ranging from 185 W to 700 W.
Shaft configurations can be customized to meet specific application needs, and both carbon and metal brush types are available. Optional encoders can also be integrated for precise speed and position feedback.
Installation
| Type | H | h | h₁ | A | b | C₁ | C₂ | C₃ | B | I | L₁ | (L₂) | (L₃) | D | E | I₄ | F | G | d | Weight(kg)≦ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | - | (±0.25) | - | - | (±0.25) | - | - | - | - | (h₈) | - | - | ⁺º·ºº⁵ | (h₁₁) | (H₁₁) | ||||
| 70ZYT | 42.5 | 79.5 | 5 | 74 | 90 | 22 | 22 | 22 | 39 | 55 | 114 | 124 | 136 | 6 | 12 | 16 | 2 | 4.3 | 7 | 2 |
| 90ZYT | 50_₀.₄ | 97.5 | 3 | 100 | 116 | 32 | 40.5 | 49 | 44 | 64 | 127 | 147 | 172 | 8 | 16 | 18 | 2 | 5.2 | 10 | 4.2 |
| 110ZYT | 63_₀.₅ | 120.5 | 4 | 115 | 130 | 34 | 42 | 57 | 70 | 85 | 172 | 188 | 218 | 114 | 20 | 22 | 4 | 11.5 | 13 | 8.0 |
| Type | N | h₂ | h₃ | M | P | S | D₁ | L₁ | L₂ | L₃ | D | E | I₄ | F | G | d | Weight(kg)≦ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (h₇) | - | (h₁₂) | (±0.15） | - | （h₁₄) | - | - | - | - | (h₆） | - | - | （h₁₁） | （h₁₁） | |||
| 55ZYT | 42 | 4 | 2.5 | 48 | 58 | 4.5 | 60 | 96 | 106 | 5 | 12 | 13.5 | 2 | 3.3 | 7 | 0.9 | |
| 70ZYT | 54 | 5 | 3 | 60 | 72 | 5.5 | 74 | 114 | 124 | 136 | 6 | 14 | 16 | 2 | 4.3 | 7 | 1.6 |
| 90ZYT | 70 | 6 | 3 | 76 | 92 | 6.6 | 95 | 127 | 147 | 172 | 8 | 16 | 18 | 2 | 5.2 | 10 | 4.0 |
| 110ZYT | 85 | 7 | 4 | 94 | 112 | 9 | 115 | 172 | 188 | 218 | 14 | 20 | 22 | 4 | 11.5 | 13 | 7.8 |
| Type | D | E | F | G | M | N | P | S | Compatible AC Motor Models | Notes |
|---|---|---|---|---|---|---|---|---|---|---|
| 70ZYT | 9 | 20 | 3 | 7.2 | 55（65） | 40（50） | 70（80） | M5 | Y₂50B14(56B14) | Direct connection possible NMRV series worm gear reducer WB series miniature cycloidal reducer X, B series cycloidal reducers |
| 90ZYT | 11 | 23 | 4 | 8.5 | 75 | 60 | 90 | M5 | Y₂63B14 | |
| 110ZYT | 14 | 30 | 5 | 11 | 85 | 70 | 110 | M5 | Y₂71B14 |
Motor Technical Parameters
| Type | Torque ( mN.m ) | Speed ( r/min ) | Power (W) | Voltage (V) | Current no more than | Allowable forward/reverse speed difference ( r/min ) |
|---|---|---|---|---|---|---|
| 110ZYT51 | 1177 | 1500 | 185 | 110 | 2.5 | 100 |
| 110ZYT52 | 1177 | 1500 | 185 | 220 | 1.25 | 100 |
| 110ZYT53 | 980 | 3000 | 308 | 110 | 4.0 | 200 |
| 110ZYT54 | 980 | 3000 | 308 | 220 | 2.0 | 200 |
| 110ZYT55 | 980 | 3000 | 308 | 24 | 16.5 | 200 |
| 110ZYT56 | 1177 | 1500 | 180 | 24 | 8.0 | 100 |
| 110ZYT101 | 1560 | 1500 | 245 | 110 | 3.0 | 100 |
| 110ZYT102 | 1560 | 1500 | 245 | 220 | 1.5 | 100 |
| 110ZYT103 | 1274 | 3000 | 400 | 110 | 4.8 | 200 |
| 110ZYT104 | 1274 | 3000 | 400 | 220 | 2.4 | 200 |
| 110ZYT105 | 1274 | 3000 | 400 | 24 | 22.5 | 200 |
| 110ZYT106 | 1560 | 1500 | 250 | 24 | 12 | 100 |
| 110ZYT151 | 2390 | 1500 | 375 | 110 | 4.5 | 100 |
| 110ZYT152 | 2390 | 1500 | 375 | 220 | 2.3 | 100 |
| 110ZYT153 | 2230 | 3000 | 700 | 110 | 8.5 | 200 |
| 110ZYT154 | 2230 | 3000 | 700 | 220 | 4.2 | 200 |
| 110ZYT155 | 2230 | 3000 | 700 | 24 | 45.0 | 200 |
| 110ZYT156 | 2390 | 1500 | 370 | 24 | 22 | 100 |

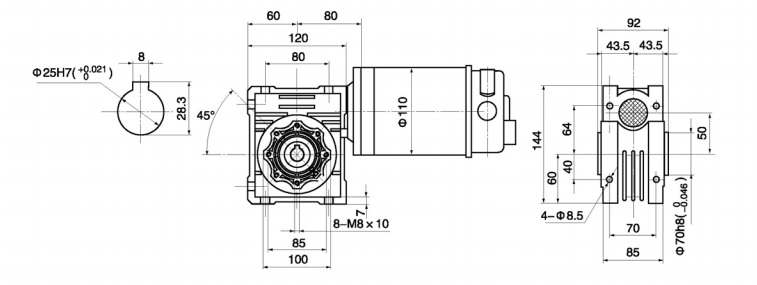

The RV050 Series with 110ZYT Motor and 71B14 Flange
The RV063 Series with 110ZYT Motor and 80B14 Flange
Application in Different Scenarios
