The 24ZY30 series is a compact, high-performance brushed DC gear motor designed for precision motion control applications that require reliability, smooth operation, and long service life.
It is rated for 12V, and combines a permanent-magnet brushed DC motor with a durable planetary gearbox, offering a wide range of reduction ratios from 3.7:1 to 1370:1 and delivering up to 1 N·m of output torque.
Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

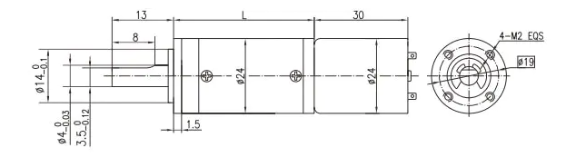

Dimensions
Diameter and length of the shaft are customizable.
Motor Technical Parameters
| Type | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current mA | Stall torque mN.m | Stall current A |
|---|---|---|---|---|---|---|---|---|---|
| 24ZY30-1230 | 12 | 3000 | 40 | 2400 | 2 | 0.5 | 90 | 10 | 0.3 |
| 24ZY30-1245 | 12 | 4500 | 60 | 3600 | 2.5 | 0.9 | 170 | 12.5 | 0.5 |
| 24ZY30-1260 | 12 | 6000 | 70 | 4800 | 3 | 1.5 | 240 | 15 | 1 |
Gear Head Main Technical Parameters
24ZY30-1230 Technical Parameters
| Reduction ratio | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 | 981 | 1370 |
| Number of gear trains | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | 5 |
| Length(L) mm | 31.6 | 31.6 | 31.6 | 38 | 38 | 38 | 38 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 | 50.8 | 50.8 |
| No-load speed r/min | 214 | 158 | 111 | 59 | 42 | 30 | 22 | 16 | 11 | 8.1 | 5.8 | 4.2 | 3.1 | 2.2 |
| Rated speed r/min | 171 | 126 | 89 | 47 | 34 | 24 | 17 | 13 | 9.1 | 6.5 | 4.7 | 3.3 | 2.4 | 1.8 |
| Rated torque N.m | 0.023 | 0.031 | 0.044 | 0.074 | 0.1 | 0.15 | 0.2 | 0.25 | 0.34 | 0.48 | 0.67 | 0.94 | 1 | 1 |
| Max. permissible load in a short time | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
24ZY30-1245 Technical Parameters
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 25 | 25 | 31.6 | 31.6 | 31.6 | 38 | 38 | 38 | 38 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
| No-load speed r/min | 1213 | 869 | 321 | 237 | 167 | 88 | 63 | 45 | 32 | 24 | 17 | 12 | 8.7 | 6.3 |
| Rated speed r/min | 970 | 695 | 257 | 189 | 133 | 71 | 51 | 36 | 26 | 19 | 14 | 9.8 | 7 | 5 |
| Rated torque N.m | 0.008 | 0.012 | 0.028 | 0.038 | 0.055 | 0.093 | 0.13 | 0.18 | 0.25 | 0.31 | 0.43 | 0.6 | 0.84 | 1 |
| Max. permissible load in a short time | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
24ZY30-1260 Technical Parameters
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| Length(L) mm | 25 | 25 | 31.6 | 31.6 | 31.6 | 38 | 38 | 38 | 38 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 |
| No-load speed r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 32 | 23 | 16 | 12 | 8.3 |
| Rated speed r/min | 1294 | 927 | 343 | 253 | 178 | 94 | 68 | 48 | 35 | 25 | 18 | 13 | 9.3 | 6.7 |
| Rated torque N.m | 0.01 | 0.014 | 0.034 | 0.046 | 0.066 | 0.11 | 0.16 | 0.22 | 0.3 | 0.37 | 0.51 | 0.72 | 1 | 1 |
| Max. permissible load in a short time | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
