PMDC-Planetary Gear Motor 36mm

The 36ZY85P series is a compact, high-performance brushed DC gear motor designed for precision motion control applications that require reliability, smooth operation, and long service life.
It is rated for 12V or 24V, and combines a permanent-magnet brushed DC motor with a durable planetary gearbox, offering a wide range of reduction ratios from 3.7:1 to 139:1 and delivering up to 3 N·m of output torque.

Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

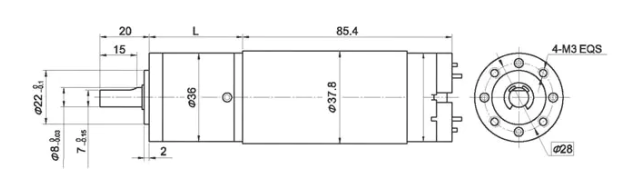

Dimensions

Motor Technical Parameters

Type	Rated voltage VDC	No-load speed r/min	No-load current mA	Rated speed r/min	Rated torque mN.m	Output Power W	Rated current mA	Stall torque mN.m	Stall current A
36ZY85P-1230	12	3000	250	2400	40	10	1.6	188	6.7
36ZY85P-2430	24	3000	150	2500	40	10	0.85	285	4.2

Gear Head Main Technical Parameters

36ZY85P-1230 Technical Parameters

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Length(L) mm	31	31	38.5	38.5	38.5	48.4	48.4	48.4	48.4
No-load speed r/min	809	579	214	157	111	59	42	30	21
Rated speed r/min	649	462	171	126	89	47	34	24	18
Rated torque N.m	0.13	0.19	0.45	0.62	0.87	1.5	2.1	2.9	3
Max. permissible load in a short time	1	1	3.5	3.5	3.5	7.5	9	9	9

36ZY85P-2430 Technical Parameters

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139
Number of gear trains	1	1	2	2	2	3	3	3	3
Length(L) mm	31	31	38.5	38.5	38.5	48.4	48.4	48.4	48.4
No-load speed r/min	809	579	214	157	111	59	42	30	21
Rated speed r/min	674	483	179	132	93	49	35	25	19
Rated torque N.m	0.13	0.19	0.45	0.62	0.87	1.5	2.1	2.9	3
Max. permissible load in a short time	1	1	3.5	3.5	3.5	7.5	9	9	9
