PMDC-Planetary Gear Motor 56mm

The 56-60ZY75 series is a compact, high-performance brushed DC gear motor designed for precision motion control applications that require reliability, smooth operation, and long service life.
It is rated for 24V, and combines a permanent-magnet brushed DC motor with a durable planetary gearbox, offering a wide range of reduction ratios from 3.6:1 to 236:1 and delivering up to 19.3 N·m of output torque.

Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

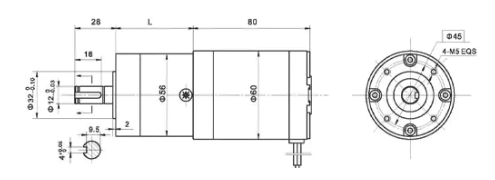

Dimensions

Motor Technical Parameters

Type	Rated voltage VDC	No-load speed r/min	No-load current mA	Rated speed r/min	Rated torque mN.m	Output Power W	Rated current mA	Stall torque mN.m	Stall current A
60ZY75-2420	24	2000	0.3	1600	50	8	0.8	215	2.1
60ZY75-2430	24	3000	0.4	2400	70	17	1.2	296	5
60ZY75-2440	24	4000	0.5	3200	90	30	2.2	404	8.5

Gear Head Main Technical Parameters

60ZY75-2430 Technical Parameters

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198	234	276	326
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4	4	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	64	76	76	76	76	76
No-load speed r/min	833	706	400	230	200	167	111	94	64	54	46	39	26	18	15	13	11	9
Rated speed r/min	667	565	320	185	160	133	89	75	51	44	37	32	20	14	12	10	9	7.5
Rated torque N.m	0.22	0.26	0.47	0.73	0.85	1	1.5	1.8	2.4	2.8	3.3	3.8	5.8	7.7	9.1	10.8	12.7	15
Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	60	60	60	60	60

60ZY75-2440 Technical Parameters

Reduction ratio	3.6	4.25	7.5	13	15	18	27	32	47	55	65	76	115	168	198	234	276	326
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3	4	4	4	4	4
Length(L) mm	41	41	41	53	53	53	53	53	64	64	64	64	64	76	76	76	76	76
No-load speed r/min	1111	941	533	308	267	222	148	125	85	73	62	53	26	24	20	17	15	12
Rated speed r/min	889	753	426	246	213	177	118	100	68	58	49	42	27	19	16	13	11	9.5
Rated torque N.m	0.29	0.34	0.6	0.94	1.1	1.3	1.9	2.3	3	3.6	4.2	4.9	7.5	10	11.7	13.8	16.3	19.3
Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50	60	60	60	60	60
