WD200 Series is a next-generation high-performance general-purpose inverter with a wide power range from 0.75 kW to 1000 kW. It adopts advanced motor control algorithms and supports precise control of AC induction motors, permanent magnet synchronous motors (PMSM), and synchronous reluctance motors (SynRM). Designed for industrial applications, the WD200 inverter delivers high reliability, stable performance, and strong expandability. It supports multiple communication protocols, enables easy cabinet integration and system grouping, and is ideal for demanding automation and drive control environments.
Technical Specification
| Technical Paremeter | ||
|---|---|---|
| Project | Parameter | |
| Input | Voltage/Frequency | Single phase:200~240V 50Hz/60Hz Three phase:200~240V 50Hz/60Hz Three phase:380~480V 50Hz/60Hz Three phase:660~690V 50Hz/60Hz |
| Allowed Fluctuation | Voltage unbalance rate:<3%;Frequency:±5%;Distortion rate satisfied IEC61800-2 | |
| Closing Impulse Current | Below rated current | |
| Power Factor | ≥0.94(with DC reactor) | |
| Efficiency | ≥ 96% | |
| Output | Output voltage | Output under rated condition:three phase,0~input voltage,error < 5% |
| Output frequency range | 0Hz~600Hz | |
| Output frequency accuracy | Max frequency ±0.5% | |
| Overload capacity | G-Heavy load:150% rated current/60s P-Light load:120% rated current/60s |
|

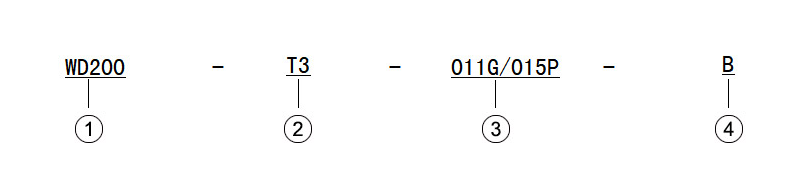

| ① | ② | ③ | ④ | ||||
| Code | Series name | Code | Voltage level | Code | Power level | Code | Integrated accessories |
| WD200 | WD200系列 | S | Single Phase | 5R5 | 5.5kW | B | Built-in braking unit |
| WD90 | WD90系列 | T | Three Phase | 7R5 | 7.5kW | L | Built-in DC reactor |
| 2 | 200V~240V | 011 | 11kW | ||||
| 3 | 380V~480V | 015 | 15kW | ||||
| 6 | 660V~690V | G | OverLoad | ||||
| P | Light Load | ||||||
