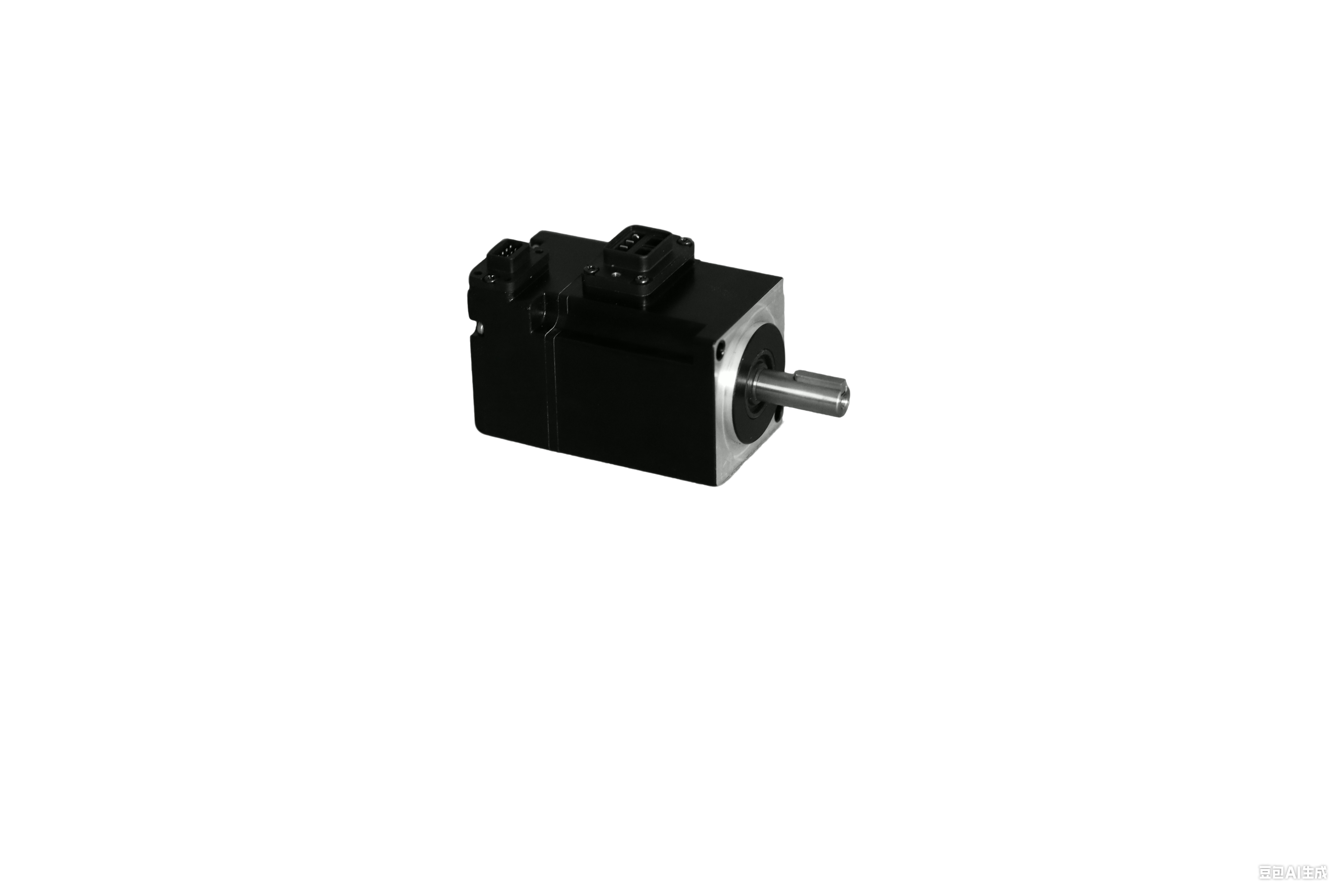

The MIXH Ultra Small Capacity – High inertia servo motors deliver 0.05–0.1 kW output with rated torques from 0.16 to 0.32 N·m. Their higher rotor inertia (0.036–0.062×10⁻⁴ kg·m²) ensures exceptional load-matching and smooth speed regulation, minimizing overshoot and vibration. With speeds up to 6000 r/min, this series is ideal for winding, indexing, and rotary applications requiring stable and reliable low-vibration performance.
Technical Specification
| Series | MIXH | ||
|---|---|---|---|
| Flange | 40 | ||
| Voltage【V】 | AC220 | ||
| Motor model | MIXH500T2* | MIXH101T2* | |
| Rated output【kW】 | 0.05 | 0.1 | |
| Rated torque【N•m】 | 0.16 | 0.32 | |
| Rated speed【r/min】 | 3000 | 3000 | |
| Max speed【r/min】 | 6000 | 6000 | |
| Max torque【N•m】 | 0.56 | 1.11 | |
| Inertial moment【×10-4kg•㎡】 | 0.036（0.046） | 0.062（0.072） | |
| Rated current【A】 | 1.1 | 1.2 | |
| Max current【A】 | 3.85 | 4.2 | |
| Resistance【Ω】 | 17.9 | 12.6 | |
| Inductance【mH】 | 16.8 | 15.4 | |
| Counter emf【V/1000RPM】 | 10 | 18.7 | |
| Weight【kg】 | 0.42（0.68） | 0.79（1.03） | |
| Poles | 10P | ||
| Insulation class | CLASS F | ||
| IP level | IP67 | ||
| Encoder | 17bit/23bit | ||
| Vibration | less than V15 | ||
| Noise | <67dB | ||
| Recommended load moment of inertia ratio | Less than 30 times | ||
| Brake | Rated voltage【V】 | 24±10% | |
| Current consumption【A】 | 0.33±10% | ||
| Static friction torque【N.m】 | ≥0.32 | ||
| Release time【ms】 | ＜20 | ||
| Attract time【ms】 | ＜50 | ||

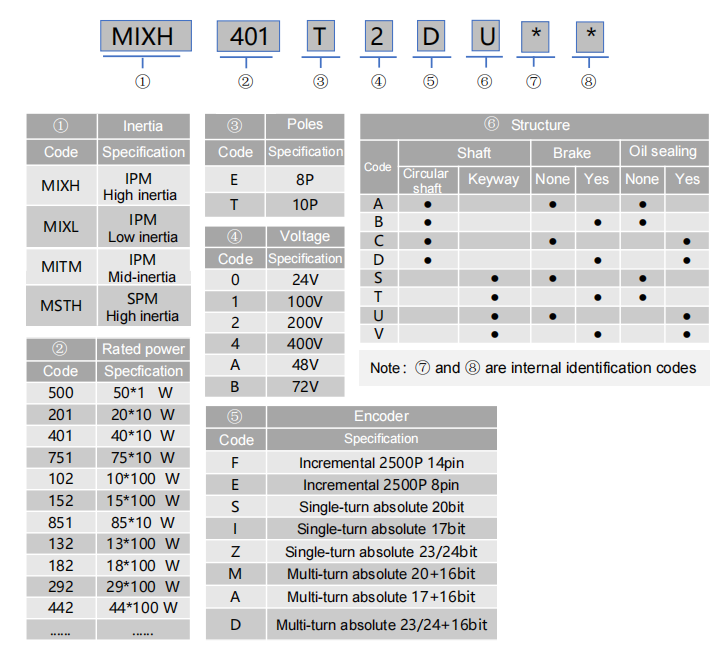

Naming Rules of M Series
