The 90mm Spur Gear Gearbox is designed for stable and efficient power transmission in applications requiring controlled torque. With a maximum allowable torque of up to 20 N·m, its continuously meshing gears provide smooth load transfer and reliable operation. The gearbox offers low vibration and noise, making it suitable for industrial equipment, automation systems, and other motion applications.

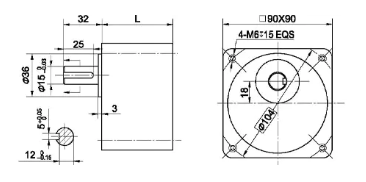

Dimensions
Gear Ratio Parameter
| Gear Ratio | L Dimension | |
|---|---|---|
| Stage2 | 3.6 ~18 | 42 |
| Stage3 | 20 ~50 | 60 |
| Stage4 | 60 ~200 | |
Parameter
| Parameter | Stage2 | Stage3 | Stage4 |
|---|---|---|---|
| Transmission efficiency | 0.81 | 0.73 | 0.66 |
| Rated tolerance torque | 5N.m | 10N.m | 20N.m |
| Input and output direction | Same direction | Reverse direction | Same direction |
| Max momentary tolerance torque | Two times of the rated torque | ||
| Operating temperature | -10℃ ~ +80℃ | ||
| Operating ambient humidity | 20%~85% RH | ||
| Recommend input speed | ≤3000rpm | ||
Technical Data
| Parameter | Stage2 | Stage3 | Stage4 |
|---|---|---|---|
| Transmission efficiency | 0.81 | 0.73 | 0.66 |
| Rated tolerance torque | 5N.m | 10N.m | 20N.m |
| Input and output direction | Same direction | Reverse direction | Same direction |
| Max momentary tolerance torque | Two times of the rated torque | ||
| Operating temperature | -10℃ ~ +80℃ | ||
| Operating ambient humidity | 20%~85% RH | ||
| Recommend input speed | ≤3000rpm | ||
