What is Servo Motor and How it Works?

When it comes to modern automation, robotics, and precision machinery, one term you will often hear is servo motor. Businesses and engineers rely heavily on these motors because of their ability to deliver accuracy, speed, and efficiency. Yet, many companies still struggle with understanding what servo motors truly are, how they function, and where they can be best applied. If your team is dealing with issues such as low accuracy, inefficiency in production, or maintenance costs from unreliable motors, learning about servo motors might just be the missing piece to your solution.

In this blog, we will break down the fundamentals of servo motors, their working principles, types, applications, and key benefits. Along the way, we will connect these insights to real industry pain points, ensuring that you not only understand the concept but also see how it can help your business grow.

Understanding the Basics: What is a Servo Motor?

A servo motor is a rotary or linear actuator that enables precise control of angular or linear position, velocity, and acceleration. Unlike standard motors that simply spin when supplied with power, servo motors operate with feedback mechanisms. This allows them to adjust and correct their position automatically based on signals received from a controller.

In simpler terms, a servo motor is like a motor with a built-in brain. It does not just move blindly; it knows exactly how far it has moved and how much further it needs to go. This characteristic makes servo motors essential for industries where accuracy and reliability are non-negotiable, such as robotics, CNC machinery, medical devices, and automated packaging systems.

Companies that rely on older induction motors often face challenges with precision. These motors may run continuously without knowing if they have reached the correct spot. Servo motors solve this issue by integrating sensors and control systems to ensure exact movements, minimizing waste and errors in production.

How Does a Servo Motor Work?

The operation of a servo motor might seem complex at first, but it becomes easier once broken down into three main components: the motor, the controller, and the feedback system.

The Motor
The motor itself is usually a DC motor, brushless motor, or AC motor, depending on the design. Its role is to provide the necessary motion.

The Controller
This is like the brain of the system. The controller sends signals to the motor about what to do, such as how far to turn or at what speed.

The Feedback Device
The feedback mechanism—often a sensor like an encoder—monitors the actual position of the motor shaft. It sends information back to the controller so the system knows if adjustments are needed.

The cycle of command, motion, and feedback repeats continuously, ensuring that the motor performs with precision. For example, if a servo motor is instructed to rotate 90 degrees, it will move toward that position and stop exactly at 90 degrees, not before or after. If resistance or load changes occur, the feedback system immediately informs the controller, which adjusts the motor output to maintain accuracy.

This closed-loop control is the reason servo motors stand out from conventional motors. It is also the key factor that allows industries to achieve high-quality output without frequent rework or downtime.

Common Pain Points in Industry That Servo Motors Solve

Despite advances in automation, many manufacturers face recurring challenges:

Low Precision and Quality Issues: Traditional motors cannot ensure exact positioning, leading to misaligned parts, wasted materials, and rejected products.

Excessive Downtime: Machines that rely on outdated motors require frequent adjustments, increasing downtime and labor costs.

Energy Inefficiency: Standard motors often consume more power than necessary, driving up operational expenses.

Difficulty Scaling Production: As production demands increase, motors that lack flexibility fail to adapt to new requirements.

Noise and Vibration: Older motors can generate high noise levels, leading to operator fatigue and workplace inefficiency.

Servo motors directly address these pain points. With closed-loop control, they deliver precision, adaptability, and efficiency—qualities that manufacturers today cannot afford to ignore. At United Motion Inc., we have seen firsthand how switching to servo-driven systems drastically reduces wasted energy, improves cycle times, and enhances product quality.

Types of Servo Motors

Servo motors are not one-size-fits-all. They come in different types depending on the requirements of your system.

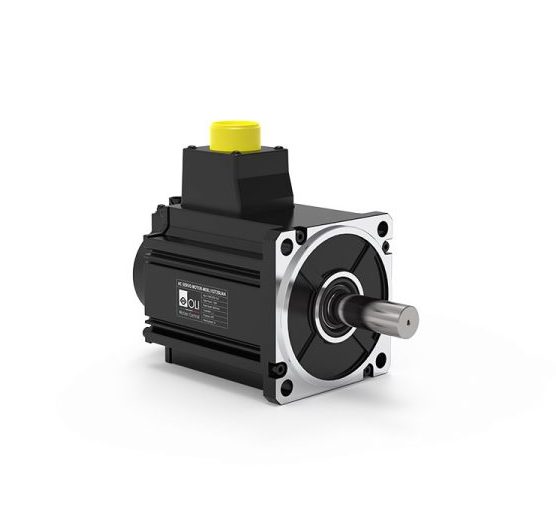

1. AC Servo Motors

These are widely used in industrial automation because they provide high efficiency and excellent torque control. They are suitable for applications like conveyor systems, robotics, and CNC machines.

2. DC Servo Motors

DC servo motors are easier to control and are often found in smaller applications, such as consumer electronics, printers, and simple robotic systems.

3. Brushless Servo Motors

Brushless designs eliminate mechanical brushes, which reduces wear and maintenance. They are highly reliable and ideal for continuous, demanding applications such as packaging and assembly lines.

4. Brushed Servo Motors

Though less common today, brushed servo motors are still used in cost-sensitive applications where simplicity is more important than durability.

5. Linear Servo Motors

Unlike rotary motors, these provide direct linear motion, making them perfect for tasks that require straight-line movements like pick-and-place machines.

By understanding the strengths of each type, companies can choose the right motor that aligns with their unique production goals.

Key Applications of Servo Motors

Servo motors are everywhere, though many people don’t realize it. Some of the most common applications include:

Robotics: Servo motors provide joints with precise movements, allowing robots to mimic human actions with accuracy.

CNC Machinery: In cutting, drilling, or milling operations, servo motors ensure exact tool positioning.

Automated Packaging: They help in filling, sealing, and labeling products with minimal error.

Medical Equipment: Servo motors are used in devices like surgical robots and imaging systems where precision is critical.

Textile Machinery: They enable smooth operation in weaving and knitting machines.

Printing Machines: Servo-driven systems ensure clear, aligned prints even at high speeds.

Each of these applications highlights why industries across the world continue to replace conventional motors with servo-driven solutions.

Servo Motor Types vs. Applications

Here’s a simple chart summarizing the relationship between servo motor types and their ideal applications:

Benefits of Using Servo Motors

Companies that adopt servo motors often experience significant improvements in efficiency and output. Some of the biggest benefits include:

High Precision and Accuracy: With feedback systems, servo motors consistently achieve exact movements.

Energy Savings: Servo systems use energy more efficiently, reducing overall costs.

Reduced Downtime: Less wear and better control mean fewer breakdowns and less maintenance.

Flexibility: Servo motors adapt easily to new tasks, making them ideal for growing businesses.

Compact Design: Despite their performance, many servo motors are lightweight and compact.

Quiet Operation: They reduce workplace noise, improving conditions for employees.

For companies under pressure to improve output without increasing costs, these benefits make servo motors an attractive long-term investment.

The Future of Servo Motors in Automation

The demand for smart manufacturing and Industry 4.0 technologies continues to rise, and servo motors will play a crucial role in this evolution. Their ability to integrate with IoT-enabled systems, collect real-time data, and enable predictive maintenance makes them future-ready.

At United Motion Inc., we believe servo motors will continue to lead innovation in robotics, energy efficiency, and sustainable automation. Businesses that invest in servo systems now will not only improve current productivity but also prepare themselves for future demands.

References

Hughes, A. & Drury, B. (2019). Electric Motors and Drives: Fundamentals, Types and Applications. Elsevier.

Fitzgerald, A. E., Charles, K., & Umans, S. D. (2020). Electric Machinery. McGraw-Hill Education.

Frailey, D. (2018). Motion Control Systems: Practical Methods for Design and Analysis. Wiley.
