PMDC-Planetary Gear Motor 52mm

The 52ZY85 series is a compact and high-performance brushed DC gear motor designed for precision motion control applications. Rated for 24V, it integrates a permanent-magnet DC motor with a durable planetary gearbox, offering reduction ratios from 4.5:1 to 312:1and up to 17 N·m of torque. This DC planetary gear motor delivers smooth operation and reliable performance for automation, robotics, and industrial equipment.

Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

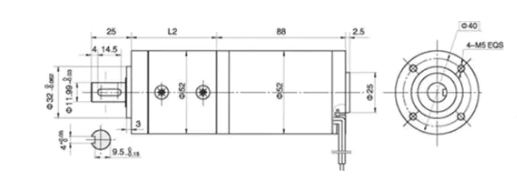

Dimensions

Motor Technical Parameters

Type	Rated voltage VDC	No-load speed r/min	No-load current mA	Rated speed r/min	Rated torque mN.m	Output Power W	Rated current mA	Stall torque mN.m	Stall current A
52ZY85-2420	24	2000	0.25	1600	60	10	0.9	260	5
52ZY85-2430	24	3000	0.35	2400	75	18	1.5	320	6
52ZY85-2440	24	4000	0.42	3200	80	27	2	446	7.5

Gear Head Main Technical Parameters

52ZY85-2420 Technical Parameters

Reduction ratio	4.5	6.25	8	20	28	36	50	64	91	127	162	225	312
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3
Length(L) mm	50	50	50	65	65	65	65	65	80	80	80	80	80
No-load speed r/min	444	320	250	100	71	55	40	31	22	16	12	9	6.4
Rated speed r/min	356	256	200	80	57	44	32	25	17.5	12	9.8	7	5
Rated torque N.m	0.24	0.34	0.43	0.97	1.3	1.7	2.4	3.1	4	5.5	7	9.8	13.6
Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50

52ZY85-2430 Technical Parameters

Reduction ratio	4.5	6.25	8	20	28	36	50	64	91	127	162	225	312
Number of gear trains	1	1	1	2	2	2	2	2	3	3	3	3	3
Length(L) mm	50	50	50	65	65	65	65	65	80	80	80	80	80
No-load speed r/min	666	480	375	150	106	88	60	46	33	24	18	13	9
Rated speed r/min	533	384	300	120	85	70	48	37	25	18	13	10	7.5
Rated torque N.m	0.3	0.42	0.54	1.2	1.7	2.2	3	3.9	5	6.9	8.9	12.3	17
Max. permissible load in a short time	6	6	6	25	25	25	25	25	50	50	50	50	50
