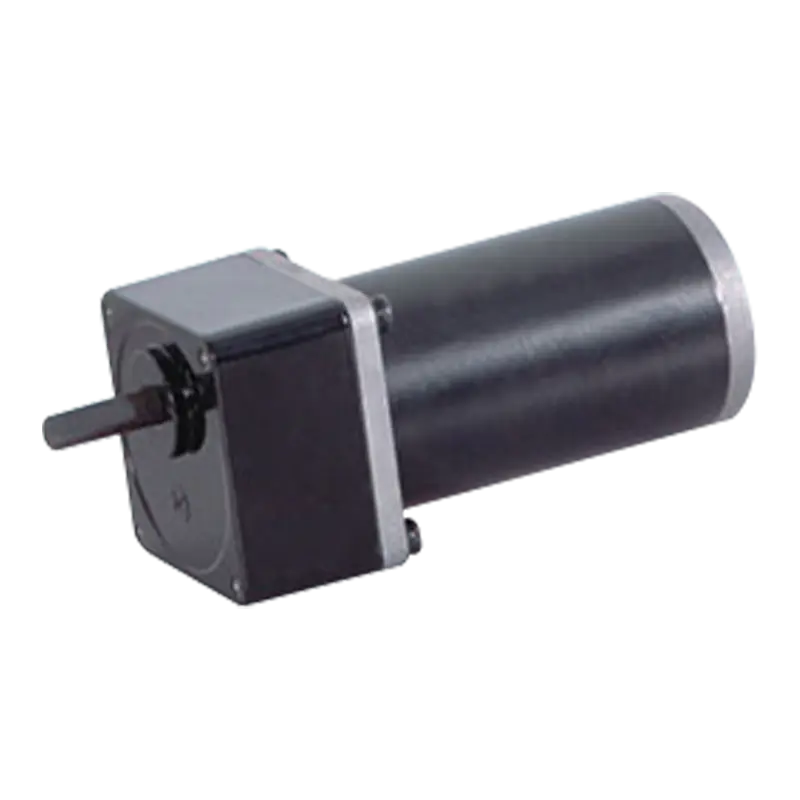

The 60mm PMDC planetary gear motor is a compact and reliable 24V planetary gear motor designed for precision motion control applications. By integrating a permanent magnet DC motor with a durable electric motor planetary gearbox, this DC planetary gear motor delivers smooth operation, stable torque output, and high transmission efficiency. With reduction ratios from 3:1 to 120:1 and up to 5 N·m of torque, it is ideal for automation equipment, robotics, and industrial systems.
Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

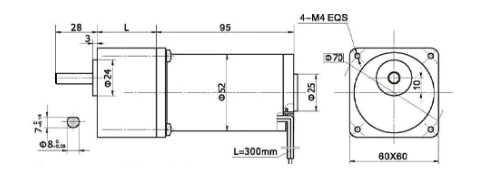

Dimensions
60mm integrated gearbox, with rated torque up to 5.0 N.m, alloy constructional steel gears, all equipped with ball bearings.
Motor Technical Parameters
| Type | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current mA | Stall torque mN.m | Stall current A |
|---|---|---|---|---|---|---|---|---|---|
| 52ZY95-2420 | 24 | 2000 | 0.2 | 1600 | 80 | 15 | 1.2 | 0.4 | 4.2 |
| 52ZY95-2430 | 24 | 3000 | 0.3 | 2400 | 100 | 25 | 1.8 | 0.41 | 6 |
Gear Head Main Technical Parameters
52ZY95-2420 Technical Parameters
| Reduction ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 | 100 | 120 |
| Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Length(L) mm | 32 | 32 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| No-load speed r/min | 667 | 400 | 267 | 200 | 160 | 133 | 80 | 67 | 40 | 27 | 22 | 20 | 16 |
| Rated speed r/min | 533 | 320 | 213 | 160 | 128 | 106 | 64 | 53 | 32 | 21 | 18 | 16 | 13 |
| Rated torque N.m | 0.19 | 0.32 | 0.48 | 0.64 | 0.81 | 0.97 | 1.4 | 1.7 | 2.9 | 3.9 | 4.7 | 5 | 5 |
| Max. permissible load in a short time | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 |
| Direction of rotation | CW | CW | CW | CW | CW | CW | CCW | CCW | CCW | CW | CW | CW | CW |
52ZY95-2435 Technical Parameters
| Reduction ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 25 | 30 | 50 | 75 | 90 |
| Number of gear trains | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 |
| Length(L) mm | 32 | 32 | 32 | 32 | 32 | 32 | 40 | 40 | 40 | 40 | 40 |
| No-load speed r/min | 1000 | 600 | 400 | 300 | 240 | 200 | 120 | 100 | 60 | 40 | 33 |
| Rated speed r/min | 800 | 480 | 320 | 240 | 192 | 160 | 96 | 80 | 48 | 32 | 26 |
| Rated torque N.m | 0.24 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 2.1 | 3.6 | 4.9 | 5 |
| Max. permissible load in a short time | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 5 | 5 | 5 | 10 | 10 |
| Direction of rotation | CW | CW | CW | CW | CW | CW | CCW | CCW | CCW | CW | CW |
