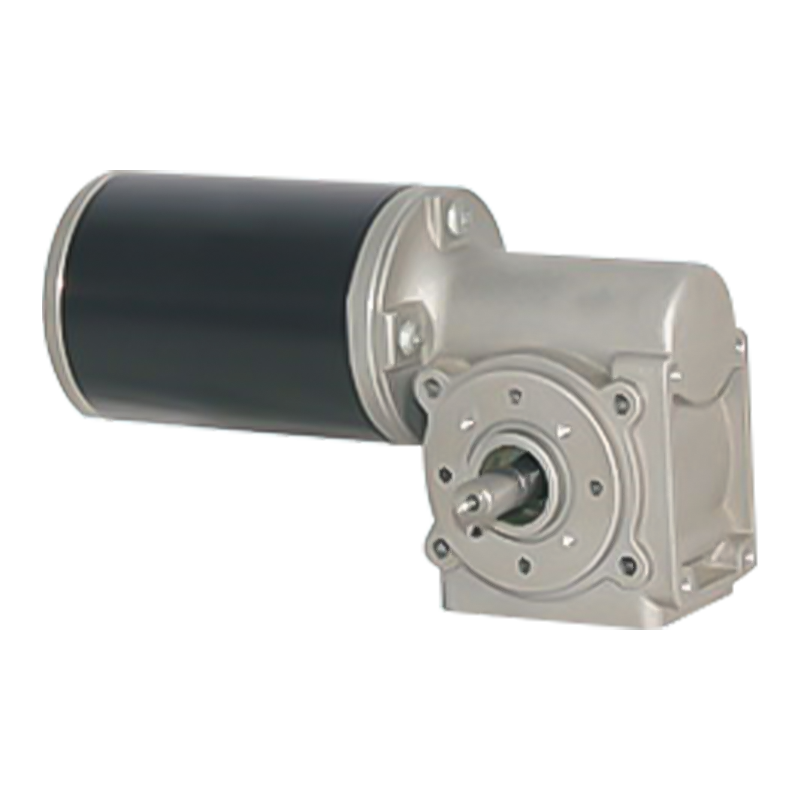

The 63ZY105 Series is a compact, high-performance brushed DC gear motor designed for precision motion control applications that require reliability, smooth operation, and long service life. Rated for 24V, it integrates a permanent-magnet brushed DC motor with a durable planetary gearbox, making it an ideal small planetary gear motor solution with reduction ratios from 10:1 to 50:1 and up to 4.3 N·m of output torque. As an experienced planetary gear motor manufacturer, United Motion Inc. delivers reliable and efficient gear motor solutions for automation and industrial equipment.
Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

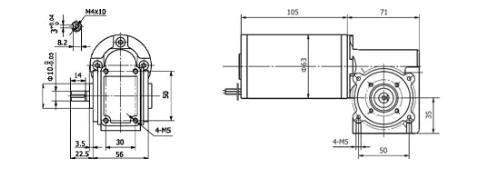

Dimensions
1、Suitable application: gearbox and motor output shafts form a right angle.
2、12VDC is available, and motor speed is adjustable upon request.
3、Encoder & brake is available upon request.
Motor Technical Parameters
| Type | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current mA | Stall torque mN.m | Stall current A |
|---|---|---|---|---|---|---|---|---|---|
| 63ZY105-2420 | 24 | 2000 | 0.32 | 1550 | 0.125 | 20 | 1.6 | 0.55 | 6 |
| 63ZY105-2430 | 24 | 3000 | 0.4 | 2500 | 0.12 | 30 | 2.2 | 0.72 | 10.8 |
Gear Head Main Technical Parameters
63ZY105-2420 Technical Parameters
| Reduction ratio | 50 | 30 | 15 | 10 |
| Number of threads | 1 | 1 | 2 | 3 |
| No-load speed r/min | 40 | 66 | 133 | 200 |
| Rated speed r/min | 31 | 51 | 103 | 250 |
| Rated torque N.m | 4.3 | 2.6 | 1.5 | 0.85 |
| Permissible load N.m | 10 | 8 | 5 | 3 |
63ZY105-2430 Technical Parameters
| Reduction ratio | 50 | 30 | 15 | 10 |
| Number of threads | 1 | 1 | 2 | 3 |
| No-load speed r/min | 60 | 100 | 200 | 300 |
| Rated speed r/min | 50 | 83 | 166 | 250 |
| Rated torque N.m | 4.3 | 2.6 | 1.5 | 0.85 |
| Permissible load N.m | 10 | 8 | 5 | 3 |
