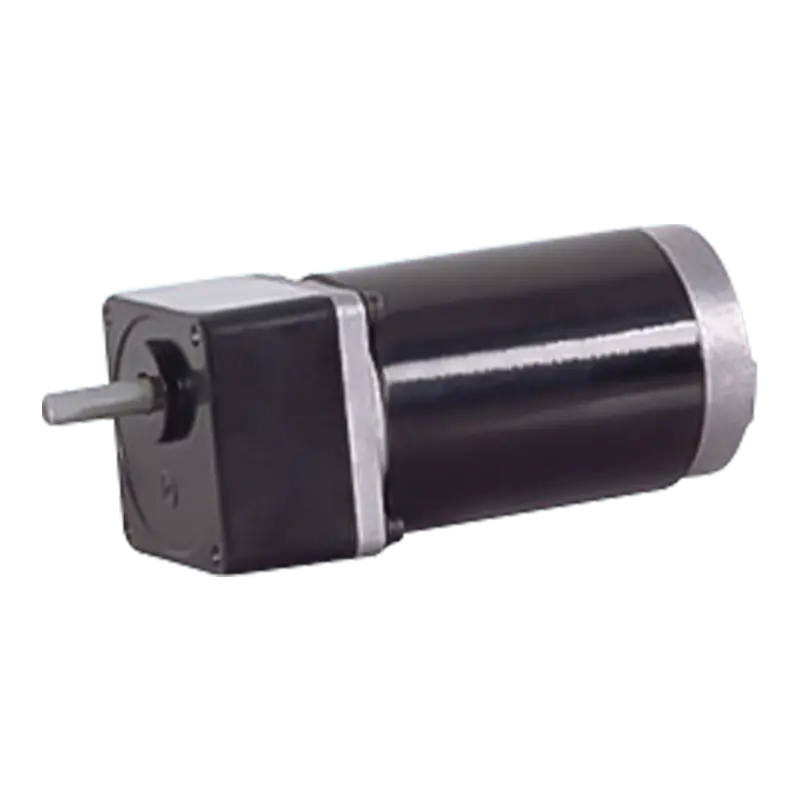

The 70-60ZY75 series is a compact, high-performance brushed DC gear motor designed for precision motion control applications that require reliability, smooth operation, and long service life.
It is rated for 24V, and combines a permanent-magnet brushed DC motor with a durable planetary gearbox, offering a wide range of reduction ratios from 75:1 to 150:1 and delivering up to 43 N·m of output torque.
Shaft configurations can be customized, carbon or metal brush types are selectable, and encoders are also available.

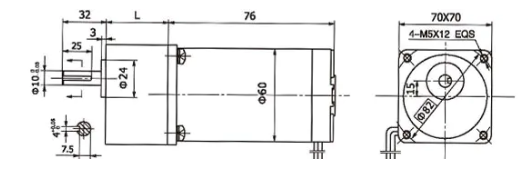

Dimensions
Motor Technical Parameters
| Type | Rated voltage VDC | No-load speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current mA | Stall torque mN.m | Stall current A |
|---|---|---|---|---|---|---|---|---|---|
| 60ZY75-2420 | 24 | 2000 | 0.3 | 1600 | 50 | 8 | 0.8 | 215 | 2.1 |
| 60ZY75-2430 | 24 | 3000 | 0.4 | 2400 | 70 | 17 | 1.2 | 296 | 5 |
| 60ZY75-2440 | 24 | 4000 | 0.5 | 3200 | 90 | 30 | 2.2 | 404 | 8.5 |
Gear Head Main Technical Parameters
60ZY75-2420 Technical Parameters
| Reduction ratio | 75 | 90 | 100 | 120 | 150 |
| Number of gear trains | 4 | 4 | 4 | 4 | 4 |
| No-load speed r/min | 27 | 22 | 20 | 17 | 13 |
| Rated speed r/min | 21 | 17 | 16 | 13 | 10 |
| Rated torque N.m | 2.7 | 3.2 | 3.6 | 43 | 5 |
| Max. permissible load in a short time | 16 | 16 | 16 | 16 | 16 |
| Direction of rotation | CW | CW | CW | CW | CW |
60ZY75-2430 Technical Parameters
| Reduction ratio | 75 | 90 | 100 | 120 | 150 |
| Number of gear trains | 4 | 4 | 4 | 4 | 4 |
| No-load speed r/min | 40 | 33 | 30 | 25 | 20 |
| Rated speed r/min | 32 | 26 | 24 | 20 | 16 |
| Rated torque N.m | 3.4 | 4.1 | 4.6 | 5.5 | 6.9 |
| Max. permissible load in a short time | 16 | 16 | 16 | 16 | 16 |
| Direction of rotation | CW | CW | CW | CW | CW |
